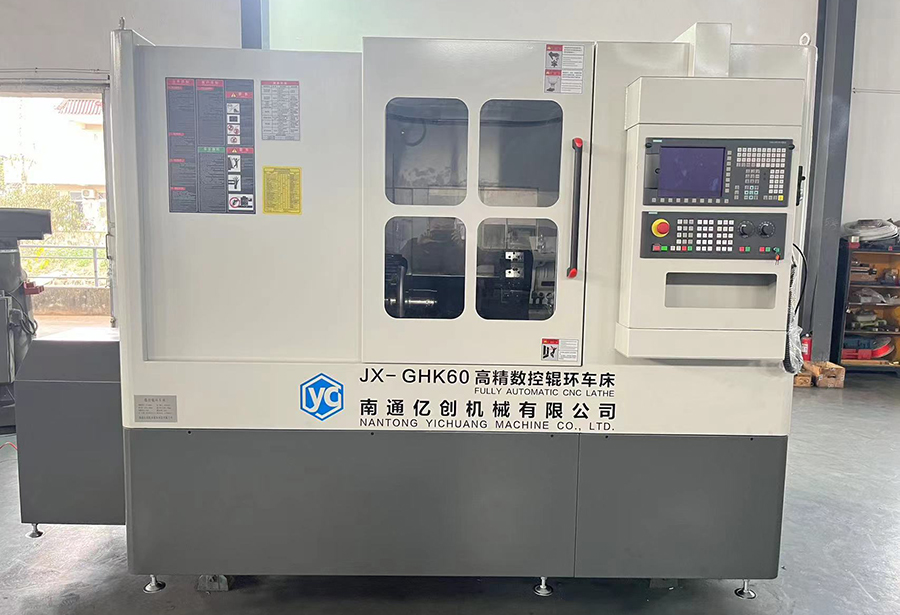

JX-GHK CNC Roll Ring Grinder

This machine is a CNC roller ring lathe, which consists of a bed, a spindle box, a tool holder, a main motor seat, a speed reduction mechanism, an automatic chip removal, a guide rail protection cover, etc. It is mainly used for the finishing of infinitely chilled spherical cast iron, high-speed steel and tungsten carbide roller rings with a maximum workpiece diameter of 500mm, a maximum workpiece length of 600mm, and a maximum workpiece weight of 800KG. It can perform finishing turning of the outer circle, end face and various hole profiles of the roller ring to achieve the effect of turning instead of grinding.

The machine tool adopts an L-shaped frame structure, which consists of bed, spindle box, slide and other basic parts, with stable organization and reasonable structural layout; the large parts of the machine tool adopt an integral inclined bed structure with thick ribs and closed frame structure, which has high rigidity and good vibration resistance. The bed, spindle box, slide and other basic parts all adopt HT300, with stable organization; the reasonable structural layout and the combination of reinforcing ribs ensure the high rigidity of the basic parts and the quality of the whole machine;

The 45° rectangular hard rail inclined bed form is adopted, which has strong vibration resistance; the guide rail surface adopts ultrasonic quenching, which has good wear resistance, and the moving parts can achieve micro-feeding to prevent creeping;

Maximum swing diameter of bed	Φ600mm
Maximum swing diameter of saddle	Φ500mm
Maximum cutting diameter	Φ500mm
Maximum cutting length	600mm
X-axis travel	320mm
Z-axis travel	650mm
X-axis rapid traverse speed	10000mm/min
Z-axis rapid traverse speed	10000mm/min
X-axis minimum feed rate	0.001mm
Z-axis minimum feed rate	0.001mm
Spindle specifications	A2-11
Maximum spindle speed	1500rpm
Spindle aperture	Φ100mm
Tool installation dimensions	40x40mm
Spindle motor power	22Kw
X-axis servo motor power	2.29Kw
Z-axis servo motor power	2.29Kw
Automatic measuring instrument	outer diameter and slot width
Automatic tool setting instrument	X-axis outer diameter, Z-axis end face
Cooling water tank capacity	220L
Cooling pump motor power	650w
Chip conveyor motor power	400w
Machine tool dimensions (length × width × height)	4000*2000*2200mm
Machine tool weight	5500Kg
