YCK-500CH CNC Thread Milling Machine

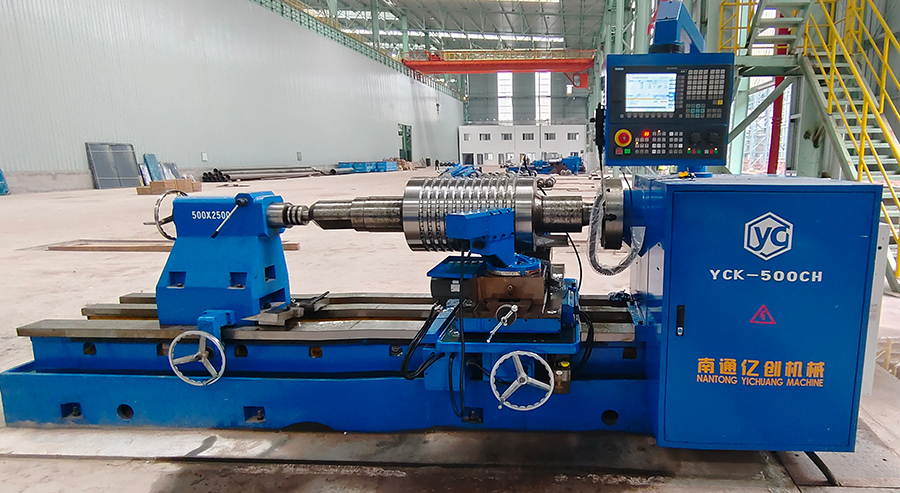

YCK-500CH CNC thread milling machine is a machine tool specially designed and customized for the steel industry. Application scope and requirements of processing: Precision rib groove processing of high-speed steel rolls, carbide roll rings, tungsten carbide composite rolls and ordinary rolls (crescent grooves, contour ribs, etc.), the machine tool automatically cuts rolls with different rotation directions and arbitrary helix angles The crescent groove can be divided into equal (or unequal) divisions or spaces in the circumferential direction of the roll; it can automatically engrave product specifications, grades, trademarks and other marks on any position of the roll.
The full adoption of advanced CNC technology and processing programming software has relatively simplified the mechanical structure of the milling machine and reduced some mechanical transmission links. While reliability, flexibility and efficiency have been comprehensively improved, the amount of maintenance has been significantly reduced.
The milling machine adopts SIEMENS 808D 4-axis distributed computer numerical control system, equipped with the seller's professional roll milling machine automation control software and a roll milling machine graphical Chinese operation interface that is in line with human habits. It has an original dynamic simulation function of the roll milling machine milling and measurement process.
The four CNC drive axes of the milling machine are equipped with SIEMENS fully digitally controlled AC servo motors. Since the AC servo motors have the advantages of high precision, maintenance-free and strong environmental adaptability, the milling machine can work reliably for a long time under harsh on-site environmental conditions. .

The main bearings of the milling machine all use INA, FAG or NSK products.

Crescent groove forming function and milling method:

● Basic crescent groove forming function: The tool bar axis of the flying cutter milling machine and the workpiece (roller) rotary axis form a 90º angle with each other, the tool bar spindle axis is placed at the center of the roll ring groove, and the tool bar head is located on the plane perpendicular to the workpiece axis and the tool bar axis. When the machine tool is working, the tool bar spindle and the roll complete the interpolation rotation movement, and the tool bar axis performs the feed movement toward the center of the workpiece until the tool bar spindle axis reaches the required center of the projection arc of the roll ring groove transverse rib (crescent groove).

● Basic milling method:

Manual tool setting, program control, automatic milling

Technical parameter:

Workpiece processing diameter	50mm～500mm
Workpiece length	500mm～2500mm
Processing crescent groove specifications	D6-D50
Processing crescent groove angle	Any
Processing crescent groove jump slot	Any
Cutting method/function	Milling head swing engraving + "flying knife" cutting rib groove
Flying knife milling speed (A axis)	0-500rpm
Swing head rotation speed (Z axis)	0-50rpm
Workpiece rotation speed (Y axis)	0-30rpm
Longitudinal feed movement speed (X axis)	0-6000mm/min
Engraving head electric spindle power	2.2KW
Hydraulic clamp length	300mm
Hydraulic clamp clamping range	D6-D25
Hydraulic clamp roller ring clamping accuracy (end face)	≤0.02mm
Hydraulic clamp roller ring clamping accuracy (outer circle)	≤0.02mm
Cooling pump motor	AB25-90W
Control system Siemens	808D
Frequency and power supply voltage	50HZ/AC380V
Machine size (lengthwidthheight)	450018001950mm
Machine weight	6500Kg

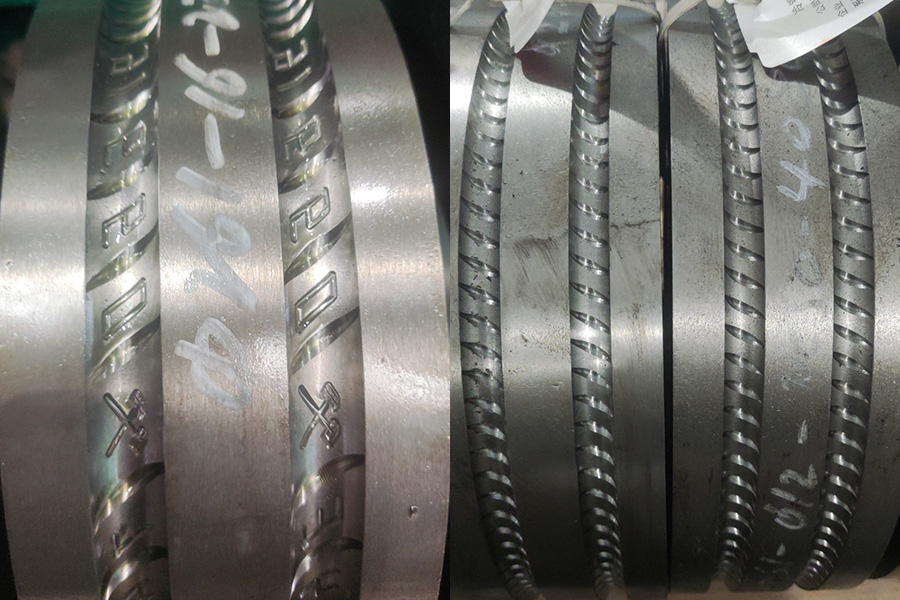

Parts machined by CNC roll milling machines:
