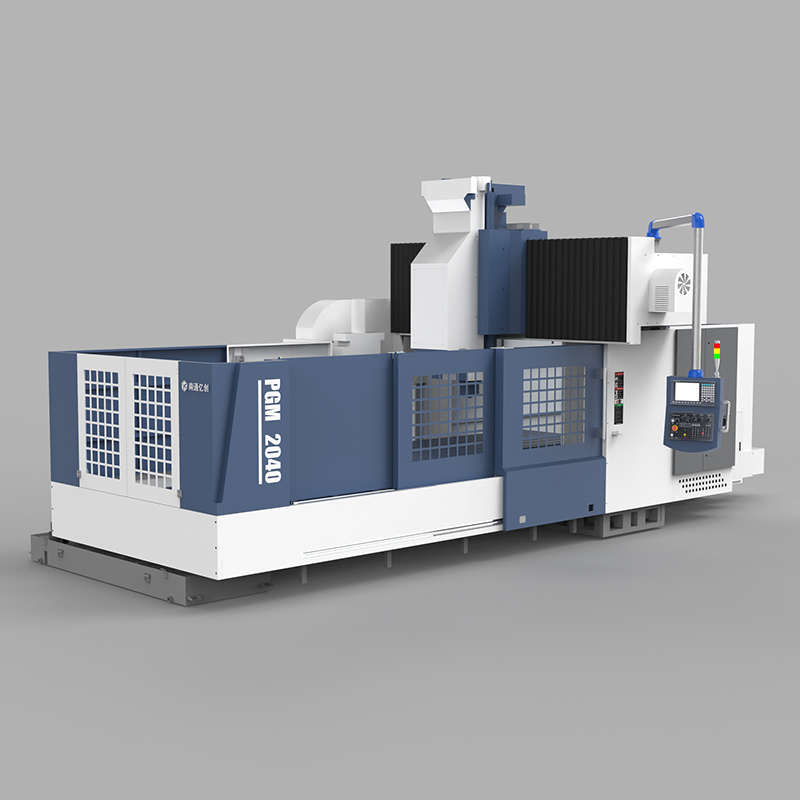

PGM2040 Gantry Machining Center |
Performance characteristics:
● Fixed beam gantry machining center is widely used in the processing of various parts in the military, automobile, aviation, mold, metallurgy, electric power and other manufacturing industries;
● This type of gantry machining center adopts a fixed beam gantry frame structure, and the whole machine has high rigidity, high vibration resistance and precision retention;
● The square slide adopts a fully inclusive four-sided constraint hardened guide rail, equipped with double hydraulic balance, and has strong cutting rigidity;
● Adopts a cross DB layout roller type linear guide rail, and has ultra-high rigidity in all four directions;
● Adopts a high DN value precision ground ball screw, equipped with a double nut preload structure, to achieve zero backlash, high rigidity and high precision transmission.
● Adopts a high-performance spindle group, which can achieve high torque, high speed and low vibration processing.
Standard configuration:
● New generation 22MA PLUS series CNC system
● High dynamic and high rigidity machine tool body
● 6000rpm belt-type high-performance spindle
● 24 disc tool magazines
● Auger-type chip removal system
● Fully automatic centralized lubrication system
● Z-axis hydraulic balance system
● Cutting fluid cooling system
● Pneumatic system
● Automatic chip removal system
● Full machine protection
● Handheld unit
● Lighting, three-color light
● Random files
Optional configuration:
● FANUC 0i-MF Plus, Mitsubishi M80 CNC system, etc.
● Main motor power upgrade
● Spindle high torque two-speed gearbox
● 5-axis AC swing head
● Oil cooler
● High-pressure central water cooling system
● Screw and guide rail cooling system
● Tool setting instrument, probe, grating ruler
|
