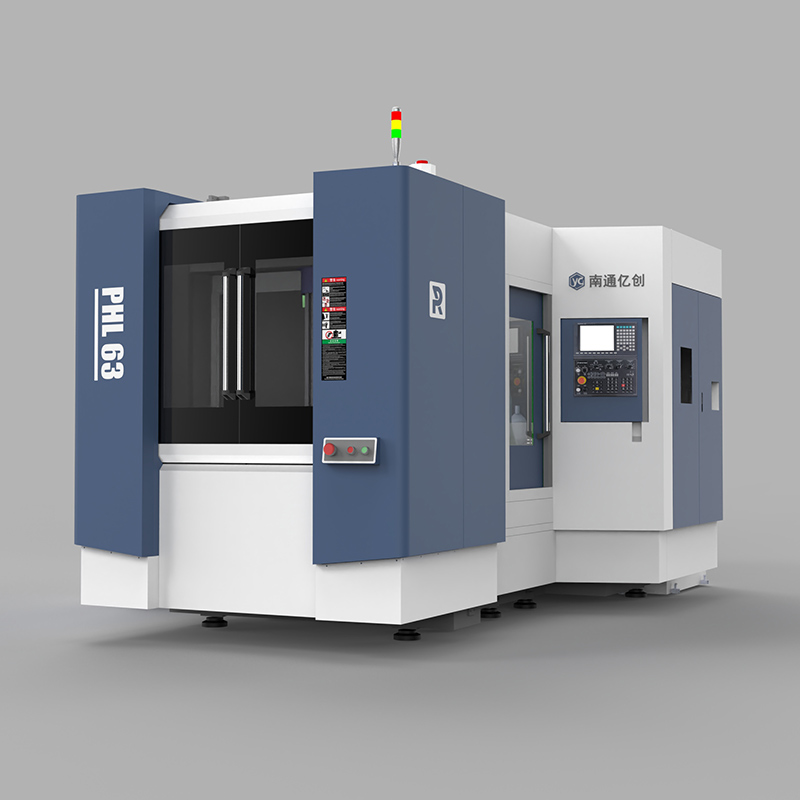

PHL63 Horizontal Machining Center

Performance characteristics:

● Horizontal machining center is suitable for military, aerospace, automobile, mold, machinery manufacturing and other industries, it can complete the processing of boxes, shells, discs, special-shaped parts, etc.;

● The horizontal machining center adopts a positive T/inverted T-type structure, adopts a high rigidity, high dynamic and high thermal stability design, and through ANSYS finite element iteration optimization, it achieves a perfect fusion of high rigidity and high precision machining;

● The feed axis drive inertia ratio is ≤2, which can achieve high dynamic performance and stability in machining, and effectively improve the surface machining quality of the workpiece

● Adopt cross DB layout roller type linear guide rail, with ultra-high rigidity in all four directions;

● Adopt high DN value precision grinding grade ball screw, equipped with double nut preload structure, to achieve zero backlash high rigidity and high precision transmission.

● Adopt high-performance spindle group, which can achieve high torque, high speed and low vibration processing.

Standard configuration:

● New generation 22MA PLUS series CNC system

● High dynamic and high rigidity machine tool body

● 8000rpm belt-type high-performance spindle

● 1 degree 1 minute rotary table

● 24 disc tool magazines

● Auger-type chip removal system

● Fully automatic centralized lubrication system

● Cutting fluid cooling system

● Pneumatic system

● Full machine tool protection

● Handheld unit

● Lighting, three-color light

● Random files

Optional configuration:

● FANUC 0i-MF Plus, Mitsubishi M80 CNC system, etc.

● Main motor power upgrade

● Spindle high torque two-speed gearbox

● 5-axis AC swing head

● Oil cooler

● High-pressure central water cooling system

● Screw, guide rail cooling system

● Tool setting instrument, probe, grating ruler

● Automatic chip removal system

● Exchange table system

● 40, 60 chain tool magazines

● Customized special machine
